All 650Fs Honda CB650F upgrade/maintenance log

[enshiu]

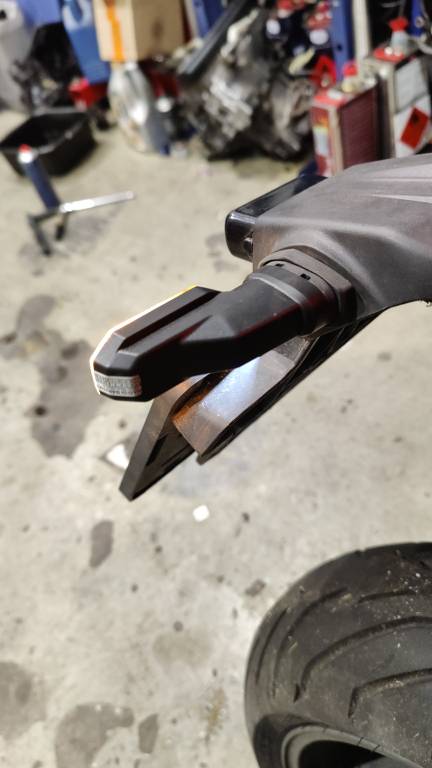

Rear indicators also fitted, some issues arised but, after first putting some 12v power without the relay on it they work.



[enshiu]

To do:
- brake hoses
- remap
- Michelin road 6 (rear)
- chain replacement and sprockets to DID 520 ZVMX

Things done:

- fan fuse broke 02-04-2023
- throttle cable adjustment 02-04-2023
- oil change and filter at 130726km 02-04-2023
- rad cap changed 02-04-2023
- Headlight and rear licence plate light modded 04-04-2023

- front indicator and relay mod 05-04-2023
- rear light replaced 06-06-2023
- Rattle at 4k at the clutch housing > chain 12-08-2023
- Main engine cam chain needs replacement 12-08-2023 incl sprockets and chain guide
- white smoke at cold start and disappears > pcv cleanup and thermostat 12-08-2023

- exhaust leak due age > akrapovic exhaust
- air filter 12-08-2023 > BMC
- spark plugs 12-08-2023 CR9EHIX-9
- thermostat 12-08-2023
- coolant bs6580 12-08-2023

- front fork seals and oil 20-08-2023
- radiator protector and chain guide rubber 03-09-2023
- gear indicator 28-09-2023
- horn replaced and gear indicator 05-10-2023
- Michelin road 6 front tyre new 10-11-2023

- Rear indicators also replaced with OEM LED 12-12-2023



[enshiu]

19 dec 2023:

New front braided brake lines:



[koolsun]

19 dec 2023:

New front braided brake lines:

The new lines look fabulous. in terms of braking performance, how would you rate it as compared to stock rubber hoses? any major improvements in the lever feel, braking bike, etc.?



[enshiu]

Yes, its harder finger/lever feel, brakes a lot harder and compared to the worn out hoses with high mileage.



[enshiu]

rod bearing knock, who has an used engine send me pb



[Cláudio Nogueira]

rod bearing knock, who has an used engine send me pb

I was right 😁
Sorry for your loss Enshiu...

But how did that happened out of nothing?! Must had been oil starvation somehow! That deserves a forensic investigation.



[miweber929]

But how did that happened out of nothing?! Must had been oil starvation somehow! That deserves a forensic investigation.

That is my question. A rod knock doesn't just start after a bike sits a few days or even a few weeks, it's gradual unless there is a failure of something, contaminated oil or oil starvation. The video also does not sound like a typical rod to my ears; until its torn down you don't know.

@enshiu have you drained the oil to see what it looks like?



[enshiu]

I changed the oil right away I bought my bike. It cant be that.

I think the tip over sensor failed and during gymkhana practice

I have let it drop a few times and had to kill switch to turn off instead of automatically



[miweber929]

I changed the oil right away I bought my bike. It cant be that.

I’m asking if you’ve checked the oil currently in it for debris, gold flakes, chunks, whatever before calling the motor toast. If you haven’t, you have zero reason to believe it threw a rod.

I think the tip over sensor failed and during gymkhana practice

I have let it drop a few times and had to kill switch to turn off instead of automatically

That shouldn’t hurt a thing unless the throttle pinned for extended times while laying on its side.



[enshiu]

gold flakes in the engine oil. Just in case I buy a good working tip over sensor after this



[Cláudio Nogueira]

gold flakes in the engine oil. Just in case I buy a good working tip over sensor after this

Yeah, bearings material. The golden colour must had been due to heat caused by friction.
Must had been oil starvation on the bearings. I believe your analysis can be right. With the bike on it's side, pickup cannot catch oil from sump.
I guess that's why bikes have tip over sensors.



[koolsun]

rod bearing knock, who has an used engine send me pb

Sorry to hear this @enshiu



[enshiu]

I haven't got time these few weeks but, I found a 2021 engine with only 3.2k mls/5k km and will be swapped inside my 2016 CB650F

Will be remapped after it and hopefully more hp as this is a 70kw/95hp engine.

Also my tip over sensor failed, I bought a second hand one to replace mine.



[enshiu]

the old engine has glitters inside the oil.

How hard is this to rebuild?



[Brammers]

Pics please.

J



[enshiu]

will make pictures when the old engine is disassembled



[enshiu]

Looks like this when the oil is out



[Brammers]

Ouch, not good!

J



[enshiu]

I got the engine out and putting missing parts on the new bike:
